That Guy
Joined
·
13,634 Posts
Discussion Starter #1 (Edited)
Edit: This thread started based on other dyno work I was doing at the time. Let me clarify the fact that this will not increase power if you have the OEM filter installed. You MUST have an aftermarket filter in order to see power gains! Also, if you have a closed-end filter then you need to do this for power gains as well!

Edit: In the following posts/pages you will see how to cut and/or remove the shroud that directs air to the radiator. There is no data to confirm or deny possible gains by doing that work. It is something that I had initially done on my vehicle prior to having created this thread. You do NOT have to do this to achieve the gains from the snorkel delete/drop-in filter!

Edit: Added dyno charts at the bottom.

A few people have asked for a quick how-to for this, so I'll try to post up something visual. I don't have my snorkel anymore to show you, but when you pull back the black plastic you will see the difference between my pics and stock.

First you must pull the four push-pins out of the plastic where it attaches to the radiator support (just forward of the two intake runners) Also, I would slide the hood release out of it's holder where it makes the 90° bend. This will help you pull back the shroud.


After you pull back the shroud, you will see the snorkel on your car that is not in this pic. There are two push-pins on the drivers side and another push-pin on the passenger side. They are a little difficult if it's just you, fyi.

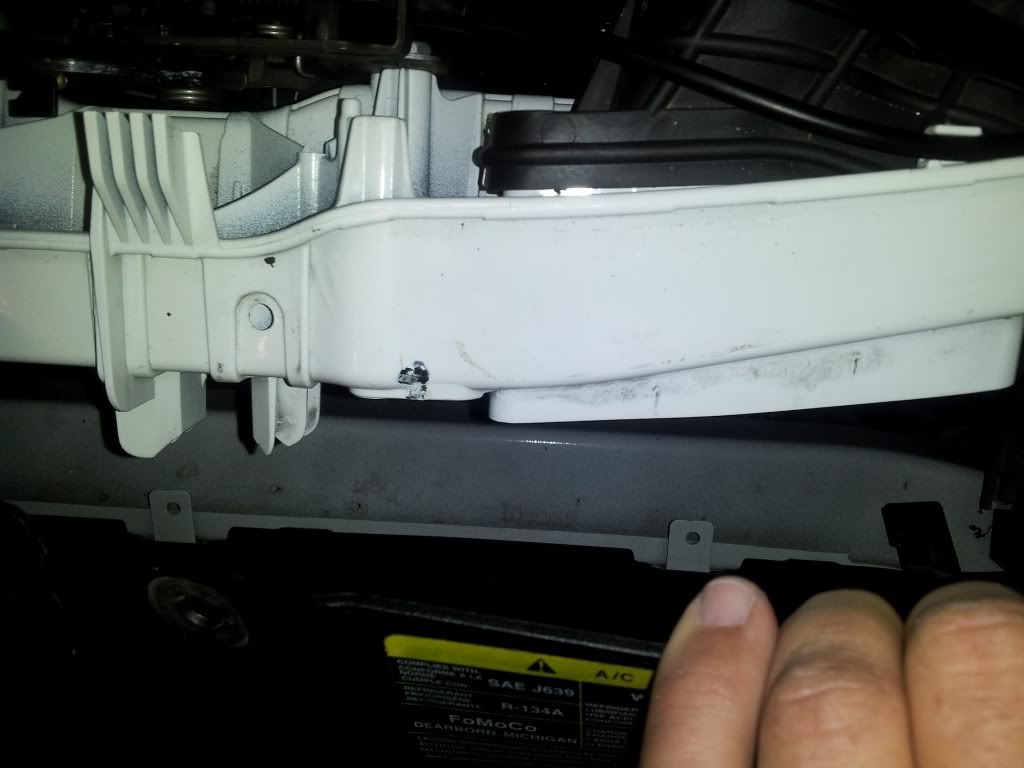

After you remove the snorkel you will see the plastic piece that keeps air directed to the radiator from under the whiskers. I only cut my drivers side (evidenced by the fingers), though others have cut both sides and some have even cut the whole top section. The only way I know to remove this (so far) without cutting is to remove the entire bumper cover.


Hopefully this helps. I would've set my snorkel in to show, but it went the way of the circular file. This is a mod that would never need to be reversed because incoming water would have to travel vertically 1-2" to get in the plenum, and dealerships won't be popping the top cover to verify it is installed. At a minimum, the snorkel must be removed for the additional hp/tq of an aftermarket drop-in air filter.

Edit: All of these pics are with the front of the car on the bottom. Sorry, that's just how it came out.

OEM-


Snorkel Delete/Drop-in-


Same car, same dyno, same day.


Sent from my stupid phone.

Edit: Add 2016 video by ChalupaJones

As promised, here's my snorkel delete video filmed by my lovely wife.
https://vimeo.com/164179828

I hope this helps you guys out! If you have any questions hit me up!


·
Rubber Side Down
Joined
·
2,415 Posts
Now I get it! Thank dyn085!


·
Registered
Joined
·
173 Posts
I just removed this tonight. The car is smoother at idle and off idle for sure. Havent had a chance to test it in real world conditions yet as we have gotten ~8inches of rain in 3 days. Thank you Jesus for the rain tho. Not sure if fabricating any sort of apparatus to redirect the air to the inlet left behind would yield any appreciable gains vs the hassle of fabing up and install.


·
I WILL correct you.
Joined
·
5,328 Posts
Good write up bro. This is definitely on the list of things to do as in...next weekend. Rep added.


·
That Guy
Joined
·
13,634 Posts
Discussion Starter #5
Now I get it! Thank dyn085!
No prob, glad it helps[thumb] I've been meaning to do it for a while and just been slacking.





I just removed this tonight. The car is smoother at idle and off idle for sure. Havent had a chance to test it in real world conditions yet as we have gotten ~8inches of rain in 3 days. Thank you Jesus for the rain tho. Not sure if fabricating any sort of apparatus to redirect the air to the inlet left behind would yield any appreciable gains vs the hassle of fabing up and install.
I've had the intent of fabbing up a fiberglass scoop to collect the width of the whisker and give it a better path to the radiator support, but I've also been slacking with that too. I don't think there would be an appreciable gain in anything other than possibly getting better mpg's, but don't quote me on it. In hindsight, I would have much rather done a scoop there than Newmissioned my airbox...


Sent from my stupid phone.


·
Rubber Side Down
Joined
·
2,415 Posts
So I got as far as getting it all apart. I only lost one clip! [thankyou] How necessary do we suppose it is to cut that flap for any kind of gain?


·
Registered
Joined
·
145 Posts
So I got as far as getting it all apart. I only lost one clip! [thankyou] How necessary do we suppose it is to cut that flap for any kind of gain?

I cut both the drivers side and passenger side. If you want some gains, cut. If not, don't - but you went through enough effort to get that far you may as well cut. In for a penny, in for a pound.


·
That Guy
Joined
·
13,634 Posts
Discussion Starter #10
Cutting the flap allows air to accumulate behind the grill and be readily available for the intake. [thumb]

Sent from my stupid phone.


·
Registered
Joined
·
173 Posts
I cut the driver side out completely. After a chance to drive the car around I will say there is a better intake note to the Foci, or its placebo. I like it either way.


·
Registered
Joined
·
21 Posts
I used a uni-bit and drilled half inch holes in the flap just below the seal strip and oblong holes at the ends to feed plenty of air in. A future project is to make an open scoop to replace the snorkel though it may be overkill.


·
Registered
Joined
·
39 Posts
I removed my snorkel yesterday and I was able to remove the the plastic piece that directs the air to the radiator. I did not have to do any cutting to remove it. There were two metal clips on each side that were holding it in place as well as the plastic clips. It did take a little force but it came out clean and I can put it back in if needed.





·
Rubber Side Down
Joined
·
2,415 Posts
Well I'm certainly glad I didn't cut in to anything. I was looking at cutting the rubber flap. Apparently that's not the right part.


·
That Guy
Joined
·
13,634 Posts
Discussion Starter #15
Thats awesome, I wish I could have seen those and just pulled it out. Maybe I'll get back in there tonight or this weekend and pull mine. I'm going to paste your pics in the initial post once I get my laptop up and running again so that others can see it and know the option[thumb]

Sent from my stupid phone.


·
I WILL correct you.
Joined
·
5,328 Posts
Ok. Here is the snorkel, for those that are new and want to see what it looks like.

This is as it sits in the car.


Is this what we're all talking about cutting?



If so there are 2 clips holding it in. Pictured here:





It comes out after removing the 2 clips albeit not the easiest. Definitely some resistance. If I pulled the wrong piece out...suck. [facepalm][mad] Because it'll be a bugger to put back in.


·
I WILL correct you.
Joined
·
5,328 Posts
The pictures of the clip are sideways. The front of the car is to the right.

Edit: I fixed the pictures orientation and added arrows to show clips location. Oriented so that front of car is bottom of picture.


·
That Guy
Joined
·
13,634 Posts
Discussion Starter #18
Yep, that's the piece that gets cut[thumb]

Removal is much more appealing for the sake of reversibility, imho. Thanks for figuring it out!

Sent from my stupid phone.


·
Registered
Joined
·
22 Posts
Thanks for the pics. I have been searching here to try and find a good walk through of how to do this to mine. I hope to give it a try tonight. I hope it makes a difference, I mean I guess anything is good for free! :) I just want there to be more low end power, seems like in the low RPM's this car can really bog down. I hope this is just the first of many mods on mine.


·
I WILL correct you.
Joined
·
5,328 Posts
Pfhew! I've been driving around for 2 hours for work.
Here's my initial feedback.

1. AWESOME!!
2. Throaty sound and louder.
3. Better throttle response across the board.
