Okay, so these have been a hot topic (see the sticky at the top of the forum), and I need to give credit to Wodan and Illinipo for their assistance in this. So, I went through, and figured this all out for people for if they want to save money. This mod ends up doing what the Steeda/FR one does, moving the mount up the notch. Other how-tos have been done for STS's but this is for adjusting the stock, and to show people what it is like if you have the rev. lockout, and for those who don't.

Here is what i did. i did the modification tonight, and was happy, but then while driving, my mount slipped back down to stock! so, i went back in, and checked it out. the screw for the mount would not tighten down all the way, so it would go up, but when shifting into 2nd and 3rd, it would pop back down. part of the problem was the rev. lockout, as it was pushing downwards with its spring. i also wanted the mount even higher. but how to do this??

what i did was slid it up as far as it would go, without the mount spinning. this left a good part of the notch exposed, but still left the issue of it sliding back down. to fix this, i used a small hose clamp. i put it over the notch and tightened it down. now, the mount will not slide down, but you have the issue of it sliding up, and popping off the notch (since it is just sitting on it now). what i did was used the rev. lockout to my advantage. it pushes back down on the mount from the shift knob.

i had noticed that the knob could be turned 3 more full turns if i muscled the hell out of it. the 3rd turn, i needed 2 hands and leverage. this lowered the knob about an eight/quarter of an inch, and forces the rev. lockout back down on the mount, so it is now tightly in place. as noted before, this left the problem of the boot catching! soooo, I did the usual and cut it down, but that was still not enough. the bar was still hitting the console itself in 1st and 5th. so, i used a razor and scraped off some of the console, where the boot ring goes (you cant see it). this allowed plenty of free play.

all in all, HOLY CRAP, what a difference!! i cannot believe it. it is like night and day. it just snaps in and out, and is so tight. mind you, i also lowered the overall height just by those 3 extra turns i got out of the knob (took some power). all in all, i would say to do this, see what you think, and then decide if you need to buy an STS. remember, you can also hack off an extra bit if you feel you need to. in my setup, i cannot do that, as i am using the rev. lockout to keep the mount in place. a way around this, or if you do not have the rev. lockout anyways, is to just put another clamp above the linkage mount (the thing you slide up the rod) to keep it in place. you could then dremel/hacksaw off some of the threads, or do more, and rethread it. your choice. what i love about this is that you get the shorter throw, but keep most of the height, and its all customizable to how you want it, for free.

Andddd now....PICS!

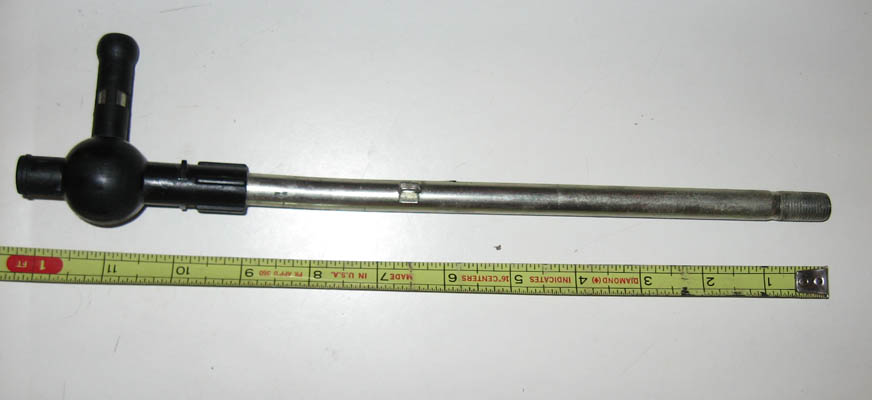

First, what is being changed....we are moving the top mount up the notch. Below is an example of the notch, from Omnifocus on FJ, via Illinipo:


So, first, remove the boot ring by pushing lightly on the rear of the ring. There are tabs, one on the rear, 2 on the front:


Rear tab:


Front tabs:


This is what it looks like under there (if you have rev. lockout):


If you dont have reverse lockout:


Now, unscrew the knob. If you have rev. lockout, there is a spring, shown here:


Now, I know the pics are a bit fuzzy (did this tonight), but you can see what i mean. The mount for the linkage I moved up is held tight around the notch by a screw. Undo this (pen is pointing at it below), and use a flathead screwdriver to open the mount enough that it will slide up. You will know how far is too far, b/c once off the notch, the mount spins around the rod. Just slide it down til it is just on the notch enough to keep it from spinning:


Notice the clamp above. That is what I mentioned, to keep the mount in place, from sliding down. Pointed out here:



So, the mount wont slide down. If you have the rev. lockout, here is how it holds the mount from sliding UP (see how the silver piece locks down on the mount):


If you do NOT have the lockout piece, id say just use another clamp on top of the mount, to keep it in place. i tried it,and it worked fine. you would have to do that if you chopped the rod any shorter.

Now that you have that done, you can put the knob back on. Here is the clearance issue though, for the linkage rod:


Here is the fix: chop off the front of the lip of the boot ring, and then the console itself:



Finished, notice you cannot see where I cut the console:


Then, just pop the boot back in, and play around with your new shifter. See what you think! Like I said, may want to chop the stick. Whew! K, I am all done. Hope you guys find this as helpful as I did. Now, this was all drawn out, but it really only takes about 30 mins. It is really easy, but lots of people have never seen under their shifter boot, and may be intimidated by the thought of modding it. Thought I could shed some light. Again, thanks to Illinipo and Wodan.

  • Like
Reactions: MisterJohnson

·
i wear no pants
Joined
·
17,506 Posts
this is not a true STS. this just changes the way the shifter feels.

this does not change the physical throw of the shifter at all...

it may change feel and it may be nicer to drive but for someone looking to affectively shorten the throw this does not do it.

  • Like
Reactions: kenzx3 and Klondike

·
i wear no pants
Joined
·
17,506 Posts
Umm, Best has a good point, changed title to shorten your shifter [thumb]
thanks. id change it to actually...how to: shorten the feel of your shifter


·
GreyRice WOoT!
Joined
·
10,786 Posts
it looks better, but has no effects of a smoother, less sloppy shift, i hate stock shifter, its udderly sloppy while in gear, a sts is suppose to tighten that feel up, so for this its, how to chop your stick


·
Registered
Joined
·
517 Posts
hmm, very interesting. I figured this could be done, just didn't have the guts to do it myself. I'll have to try it this weekend. Thanks for the write up (rep will be given if this works out well!).

-Ken


·
Force-Powered Focus
Joined
·
6,877 Posts
Discussion Starter #7
Wait, why doesnt it change the shift point? Thats what an sts does, is move the linkage point higher, and that is what we are doing. The only other difference would be the actualy shorter rod itself, which i did not chop, so its not how to chop your stick.


·
Registered
Joined
·
0 Posts
Wait, why doesnt it change the shift point? Thats what an sts does, is move the linkage point higher, and that is what we are doing. The only other difference would be the actualy shorter rod itself, which i did not chop, so its not how to chop your stick.
A true short shifter reduces the angle below the pivot point that the shaft has to go to shift. All that was adjusted was the upper shaft area

Let me try to find you an article on this.


·
Force-Powered Focus
Joined
·
6,877 Posts
Discussion Starter #9
yeah, i was right, i found it here, where it was discussed:
http://www.focusfanatics.com/forum/showthread.php?t=168158&highlight=short+throw

in this, i am not shortening the stick at all, but moving the linkage pivot point. the throw decreased by about 3/4 of an inch per gear, and is much tighter. if i DID cut the stick, it would be even less. hardly even a neutral position....so i dont get what you guys are talking about?


·
Force-Powered Focus
Joined
·
6,877 Posts
Discussion Starter #11
A true short shifter reduces the angle below the pivot point that the shaft has to go to shift. All that was adjusted was the upper shaft area

Let me try to find you an article on this.
i know that. but when i talked to steeda, they said they didnt change the pivot point itself with theirs, at the ball. its in the same place, but they moved the notch up, then shortened the stick by half an inch. they also note in their instructions that you have to adjust ur boot b/c of the new position. so i just did what they said, and others have done. like i said, it was also discussed in the link i posted above.


·
Force-Powered Focus
Joined
·
6,877 Posts
Discussion Starter #12
please understand, i didnt change the height. i changed the pivot connection point. changing the height would have meant shortening the stick. i did what steeda does. check that FF link i posted above.


·
Force-Powered Focus
Joined
·
6,877 Posts
Discussion Starter #13
see this from that thread:

The pivot point is not moved higher, it is the mounting point for the upper cable that has moved

if the pivot point moved, then the black ball would be higher...

so, my new recommendation, cut it down 1.5", and then figure something out to keep the mount 0.5" above the notch
this is in reference to the steeda.

and this is from your article (which is a good one, btw, i recommend anyone interested in this read it, as it reinforces what we are doing here):

"The geometry of a short shifter differs from the stock shifter in order to reduce the distance that the upper section where your shift knob threads on needs to move to achieve the same degree of movement in the lower section where the shift rod or shifter cables attach. "

THAT cable attach is what we moved, and what most short throws move.


·
Registered
Joined
·
0 Posts
I am clarifying as we speak. Let me read the thread and see if the linkage below the ball moves any on the focus. If it doesn't move the distance below the ball with the aftermarkets then you may be correct. Let me look first.


·
Registered
Joined
·
0 Posts
Yes I did clarify that the distance is the same below on the aftermarkets so you sir are correct, the only problem I see is that you cables may get messed up by doing what you are doing.


·
Force-Powered Focus
Joined
·
6,877 Posts
Discussion Starter #16
thanks. i DID clarify this with steeda already though. and mike at hilbish,who is a steeda dealer. they dont move the ball part.

look: this is stock:


this is steeda:


look at the balls. they didnt move them.


·
Force-Powered Focus
Joined
·
6,877 Posts
Discussion Starter #17
Yes I did clarify that the distance is the same below on the aftermarkets so you sir are correct, the only problem I see is that you cables may get messed up by doing what you are doing.
thanks ken. i knew i wasnt crazy, and i was all excited to get this info out to the community,then you scared the crap out of me lol. can you change it back, the title i mean?

remember, this is not shortening the shifter. only changing the cable pivot point. i dont think the cable would be messed up, since this is what the steeda does anyways.


·
Force-Powered Focus
Joined
·
6,877 Posts
Discussion Starter #18
hmm, very interesting. I figured this could be done, just didn't have the guts to do it myself. I'll have to try it this weekend. Thanks for the write up (rep will be given if this works out well!).

-Ken
great, thanks for the rep!

like i said, this is what i did this for...to give others the 'guts' to try it themselves, see how they like it. if you need help, just PM me.


·
GreyRice WOoT!
Joined
·
10,786 Posts
thanks. i DID clarify this with steeda already though. and mike at hilbish,who is a steeda dealer. they dont move the ball part.

look: this is stock:


this is steeda:


look at the balls. they didnt move them.
im sure sloppyness is ttil there, if you look really closely at the steeda compared to stock, it appears the black plastic right after the metal shaft gets a lil thicker then stock, resulting in less play, unless im not thinking logically, but it makes sense to me, i just hate how i can move shifter side to side in gear, we need brad in here to tell us how the f2 shifter is as far as sloppyness goes
