Many people want to know what turbo options are available for the Duratec Focus, so here is all the unbiased information you need about the kits that are out there.

FSWerks (Focussport) Duratec Turbo Kit Information






-FSWerks is now a Garrett Certified Kit Manufacturer.
Only Garrett-Certified Kit Manufacturers can display the Garrett Kit Manufacturer badge with the business' identifying number. These manufacturers have completed the necessary requirements to receive the Garrett stamp of approval. You can trust a Garrett-Certified Kit Manufacturer to deliver!

FSWerks' new Turbocharger kit for the 2.0 and 2.3 litre Duratec Focus delivers serious horsepower and torque, increasing your car's output by at least 70% on the 2.0 and at least 75% on the 2.3 liter. Refined driveability and a factory appearance make this kit the perfect choice for Focus enthusiasts everywhere. Included in the kit price is FREE dyno tuning support. WIth several years of Focus ECU tuning experience, we are able to efficiently help local AND remote customers get SAFE and RELIABLE power from the FSWerks turbo kits. Comes with a Lifetime warranty** on the ITG Maxogen air filter, SCT flasher and a 1 year warranty** on all other parts. (Note: Now comes with SCT X3 not XCalibrator 2 as shown)

Stage 1 Turbo kit - 8 PSI - $3,195.00 - 210+whp, 200+wtq (2.3L Manual) 190+whp, 185+wtq (2.0L Manual) on a Dynojet Dynamometer
● Garrett GT28R turbo with custom modifications
● Garrett GT28RS and GT2871R options and upgrades

● Internal wastegate actuator
● Cast turbo manifold
● Stainless steel downpipe with integrated flex and o2 sensor fittings
● Powder coated plumbing with bead rolled ends
● 3 and 4 ply silicone connecting hoses
● Stainless steel hose clamps
● Heat wrap for all critical components
● 42lb. Bosch fuel injectors
● Water line kit

● Stainless steel braided oil drain

● Bosch Diverter Valve (upgradeable to Bailey, VF, Turbosmart Dual Port for higher boost applications/more sound)
● Custom MAF housing
● ITG Maxogen air filter
● FSWerks/SCT X3 ECU flasher WITH Stage 1 programming
● Free dyno tuning session - call for details

Stage 2 Turbo kit - 11 PSI - $699.95 - 240+whp, 240+wtq (2.3L Manual) 215+whp, 220+wtq (2.0L Manual) on a Dynojet Dynamometer
Also with a 2.3L Auto, at 9.5psi, produced 216.6whp and 212.7wtq.
● Front mount intercooler
● Powdercoated plumbing
● 3 and 4 ply silicone hump hoses
● Stainless steel hose clamps
● TurboSmart Manual boost controller
● Stage 2 ECU programming

FSWerks Tuner Edition Turbo Kit
FSWerks' new Tuner Edition Turbocharger kit for the 2.0 and 2.3 litre Duratec Focus delivers serious horsepower and torque potential. Factory appearance and fit make this kit the perfect choice for the Do-It-Yourself Focus enthusiasts. If you have intermediate mechanical skills, knowledge, and the will to make your Focus more powerful then this is the perfect choice to achieve your goals AND save money! This kit offers the essentials and allows you to make choices on your air filter, injector, ECU flasher, programming, and diverter valve.

Stage 1 Tuner Edition Turbo kit $2,499.00
What it DOES include:
● Garrett GT28R turbo with custom modifications
● Garrett GT28RS and GT2871R options and upgrades
● Internal wastegate actuator
● Cast turbo manifold
● Stainless steel downpipe with integrated flex and o2 sensor fittings
● Powder coated plumbing with bead rolled ends
● 3 and 4 ply silicone connecting hoses
● Stainless steel hose clamps
● Heat wrap for all critical components
● Water line kit
● Stainless steel braided oil drain
● Custom MAF housing
What it DOES NOT include:
● 42lb. Bosch fuel injectors
● Bosch diverter valve
● ITG Maxogen air filter
● Instructions or instructional CD
● Tech support
● FSWerks/SCT X3 ECU flasher WITH Stage 1 programming
● Free dyno tuning session
● Warranty*

Stage 2 Tuner Edition Intercooler kit $649.95
What it DOES include:
● Front mount intercooler
● Powdercoated plumbing
● 3 and 4 ply silicone hump hoses
● Stainless steel hose clamps
What it DOES NOT include:
● TurboSmart Manual boost controller
● Stage 2 ECU programming
● Warranty
*Warranty on the Garrett GT28R turbo is 1 year when a water line is used. If a water line kit is not used, the Garrett warranty will be voided.

FocusSport also has their kits available for the 2008-2009 Focus! They announced in May 2009 that everything is ready.
The FocusSport kit is recognized by Garrett as worthy of being on their website and an authorized Garrett Kit. And as stated above, they are a certified kit manufacturer as well.
http://www.turbobygarrett.com/turbobygarrett/distributor_locator/garrett_kit_manufacturers.html

F2 Duratec Turbo Kit Information


UnfocusedZX4's Car

F2 is proud to offer the most affordable solution for your Duratec powered Focus. We manufacturer almost all of the kit in house and we offer a very nice clean and easy install. This kit has an OEM look but offers more than OEM power. With the support of DB performance we offer a wide range of tuning options, we can support local customers as well as the customers that are far away. We have tested the kit in our cars for over 2 years and we have come up with the best turbo system for your focus. This kit is the Stage 2 kit and it comes inter cooled, 10psi to 11psi. We have tested it and we recommend not going using any higher boost level on a stock motor. This kit works on either a 5-speed or auto transmission. The kit comes with a Lifetime Warranty on our Manifold, Air Filter, SCT Flasher and all other parts come with a one year warranty. Warranties will start after submission of paperwork supplied and Data Logs to DB Performance.
So here are the specs and details of the F2 Turbo Kit for the Focus 2.3L and 2.0L (2003-2007):




Included in the Stage 2 Turbo Kit- $3,450.00
  • Master Power Turbo (802312) WILL BE CHANGING TO COMP TURBO
  • Internal waste gate actuator
  • F2 Cast Turbo Manifold w/jet coating
  • F2 Stainless steel downpipe w/integrated flex (jet coated and o2 sensor fittings)
  • F2 Powder coated plumbing w/bead rolled ends
  • F2 BSD kit w/2.3L Engines
  • F2 Oil Baffle Kit
  • 3 and 4 ply silicone hoses
  • Stainless steel T-bolt hose clamps
  • 39lb. matched ford injectors
  • Stainless steel braided lines w/AN fittings
  • One step colder spark plugs pre-gapped
  • Turbosmart Dual Port BOV
  • Turbosmart BOV hose fitting kit
  • Turbosmart Boost Tee Boost Controller
  • F2 filter
  • DB Performance/SCT Xcal 3 ECU flasher w/Turbo program
  • Intercooler Piping
  • Front Mount Intercooler
  • AEM Uego wideband sensor w/gauge
  • All Hardware and Gaskets included
-On a Dynojet the Intercooled F2 kit produces 191 TQ and 185 HP at 8 psi on a 2.0L Manual Transmission.


-as more dynos become available, more info will be given on both kits, including graphs, peak hp/tq rpm, comparisons of hp/tq per rpm.
F2 Also offers this kit with NO tuning or Xcalibrator tuning device for $2,695.00. It includes everything else listed.

-There is also a stage 1 kit from F2 that DOES NOT INCLUDE an intercooler or the piping for it OR a boost controller. It is $2,995.00

WHEN IT COMES TO DYNOS, EVERY DYNO IS DIFFERENT. DYNOJETS ARE DIFFERENT FROM DYNAPACKS, WHICH ARE DIFFERENT FROM DYNO DYNAMICS, WHICH ARE DIFFERENT FROM MUSTANG DYNOS, ETC. EVEN DYNOS OF THE SAME TIME WILL YIELD SLIGHTLY DIFFERENT RESULTS. IT IS ALSO POSSIBLE TO SET UP A DYNO TO READ HIGHER THAN IT SHOULD ADJUSTING LOAD, CORRECTION FACTORS, ETC. THE ONLY WAY TO KNOW HOW VEHICLES OR KITS COMPARE IS TO USE THE SAME DYNO IN THE SAME CONDITIONS (air temp, cooling procedure, etc)





Differences between Focussport’s and F2’s intercooled kits.
  • Price – FSWerks $3,894.95 F2 $3,450.00
  • Turbo- FSWerks Garrett GT28R F2 Master Power Turbo (802312)
  • F2’s manifold and stainless steel downpipe is Jet Coated. FSWerks’ manifold and stainless steel downpipe is not.
  • FSWerks' kit has steel piping. F2’s kit has aluminum piping. Both are powdercoated black.
  • F2’s kit comes with a balance shaft delete kit for the 2.3L. Focussport’s kit does not ($33.00 from FSWerks).
  • F2’s kit comes with an oil baffle. FSWerks' kit does not.
  • FSWerks' kit comes with 42lb Bosch injectors. F2’s kit comes with 39lb Ford Racing injectors.
  • F2’s kit comes with 1-step colder spark plugs. FSWerks' kit does not ($12.00 from FSWerks).
  • F2’s kit comes with a Turbosmart Dual Port BOV/DV. FSWerks' kit comes with a Bosch DV.
  • FSWerks' kit comes with an ITG Maxogen Air Filter. F2’s kit comes with an F2 Filter.
  • F2’s kit comes with an AEM UEGO Wideband gauge. FSWerks' kit does not.
  • FSWerks' kit comes with a turbo water line kit. F2’s kit does not.
  • FSWerks' kit comes with FSWerks' tuning. F2’s kit uses DB Performance tuning.
  • FSWerks' kit has been around for years. F2’s kit was released in October 2008.
  • FSWerks has over 86 kits sold as of June 2009. F2 has under 3 sold as of June 2009.
  • FSWerks' kit comes with access to special f/i forum on Focaljet.com (a priceless resource). F2 has their own general forum much like The Focaljet on f2usa.com.

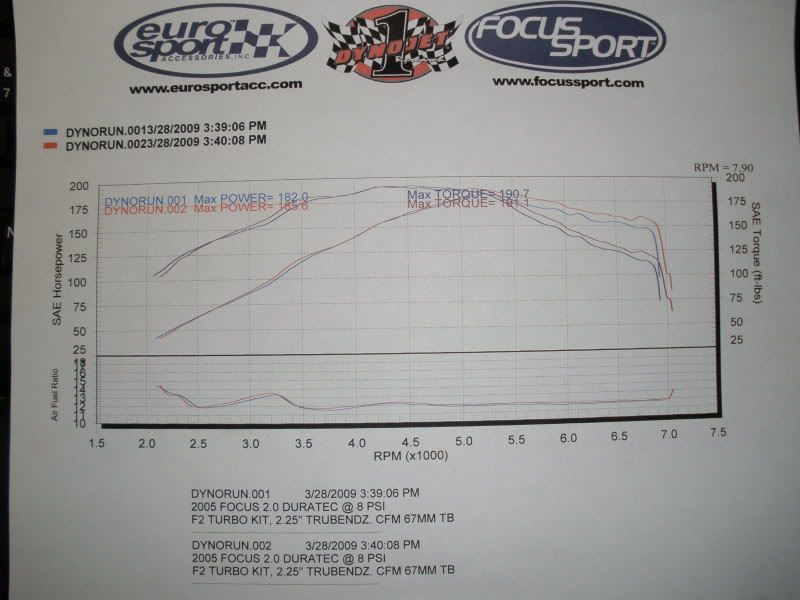

Dyno Information – Dynojets

Both vehicles in the graphs have a 2.0L Duratec Manual Transmission and are running 8psi intercooled.

However F2’s kit has a larger throttle body and a 2.25" exhaust and FSWerks kit has the stock throttle body and a 2.5" exhaust.

F2


FSWerks


-------------FSWerks Kit -F2’s Kit ---------------
2300rpms - 63whp 135wtq --- 50whp 125wtq
2800rpms - 90whp 170wtq --- 78whp 145wtq
3300rpms - 125whp 195wtq - 110whp 165wtq
3800rpms - 140whp 195wtq - 130whp 180wtq
4300rpms - 155whp 185wtq - 165whp 191wtq
4800rpms - 173whp 186wtq - 170whp 185wtq
5300rpms - 184whp 184wtq - 182whp 182wtq
5800rpms - 188whp 170wtq - 175whp 157wtq
6300rpms - 190whp 160wtq --162whp 130wtq
6800rpms - 195whp 150wtq --160whp 125wtq

------------ADVANTAGE--------------
2300rpms - FS +13whp +10wtq
2800rpms - FS +12whp +25wtq
3300rpms - FS +15whp +30wtq
3800rpms - FS +10whp +15wtq
4300rpms - F2 +10whp +6wtq
4800rpms - FS +3whp +1wtq
5300rpms - FS +2whp +2wtq
5800rpms - FS +13whp +13wtq
6300rpms - FS+28whp +30wtq
6800rpms - FS +35whp +25wtq

Based on the graphs the peak numbers for both kits are close with FSWerks kit having 10 more whp and 5 more wtq, but the F2 kit takes longer to build to the power and falls off much faster than the FSWerks kit. Also, the A/F on the F2 kit runs a little more lean than the FSWerks kit. Even though FSWerks' A/F numbers aren't listed on this graph, they go from around 12 down to 11-11.5 over the whole rpm range while F2's remain at about 12 til 7k rpms.

-Again remember that the F2 kit has a larger throttle body installed and the FSWerks kit has a 2.5" exhaust compared to 2.25" for the F2.


-If anyone feels there is more I should add, please PM me and I will add it on here.


·
Registered
Joined
·
404 Posts
I think I'd still go with FS just because it can be upgraded to the stage 2 for more power. Til F2 comes out with a stage 2 anyway.


·
FocusFreak
Joined
·
2,438 Posts
Both vehicles in the graphs have a 2.0L Duratec Manual Transmission 2.25” exhaust

However F2’s kit IS intercooled 8psi and has a larger throttle body, Focusssports kit IS NOT intercooled 8psi and has the stock throttle body- it is the Stage 1 (the only graph at 8psi available for a 2.0)
this is incorrect info. the FSW kit is intercooled at 8psi and has a 2.5" exhaust. the mods are on the dynograph.


·
Registered
Joined
·
687 Posts
from what i hear in mustang forum and mags, the turbo from f2 isn't the best either


·
Fear the TurboSnail!
Joined
·
6,626 Posts
Well I'm not having any problems with my F2 turbo kit.


·
Registered
Joined
·
1,300 Posts
Discussion Starter · #10 ·
fixed it syz! sorry i missed that part before.. lol

and mave you wouldnt see problems right away..

i dont want this to be people saying bad things about kits though! this is an informational thread only. start a new thread for that...


·
Registered
Joined
·
1,156 Posts
In comparing the two, I think FS provides better customer support. Thus, their product is superior regardless of all other factors (in my biased opinion). Nice comparison thread.


·
Fear the TurboSnail!
Joined
·
6,626 Posts
Personaly I've had awsome customer support from F2. In fact since they have to source out there tuning, F2 has put alot of there own money into tuning my car to figure out the problem that I had. I've had the car back since atleast since January and no problems since. Also i'm getting the revised piping for the turbo kit. F2 redid there piping so people who want to run the FSwerks lower stress bar can. I think thats awsome that they'll change stuff to make there product work with other companies parts.


·
Registered
Joined
·
1,156 Posts
Personaly I've had awsome customer support from F2. In fact since they have to source out there tuning, F2 has put alot of there own money into tuning my car to figure out the problem that I had. I've had the car back since atleast since January and no problems since. Also i'm getting the revised piping for the turbo kit. F2 redid there piping so people who want to run the FSwerks lower stress bar can. I think thats awsome that they'll change stuff to make there product work with other companies parts.
That is pretty awesome if you view it that way. Ricardo must have gone a long way to help you, and I will admit he is always willing to help a customer any way he can.

My viewpoint is that FS doesn't need to change their product or fix problems that occur after install/tune. As a production unit, the FS kit is superior...at least from a business standpoint.

As far as driveability, I have no idea. I have never driven a boosted focus.


·
Registered
Joined
·
1,300 Posts
Discussion Starter · #16 ·
please keep this only an informative thread.. if you have information about the kits i do not have, please feel free to pm me and i will add it to the main post.

if you have opinions about the products, please start another thread.

thanks!


·
Fear the TurboSnail!
Joined
·
6,626 Posts
I'll PM you once I have all the new info about the kit. After all my car is the first one with the production kit. There were bound to be a change or two. Look at the changes there exhaut manifold has gone through. People still love those.


·
Registered
Joined
·
132 Posts
Cant wait to see where this goes. I think you may have opened a can of worms with this one Streetracer. HA! Great information however, I was getting tired of trying to compare two different browser windows to see which one I would be interested in.


·
Registered
Joined
·
1,300 Posts
Discussion Starter · #19 ·
shouldnt go anywhere irish.. Tom told me i could post it, just not have direct links to fswerks or their address. nothing wrong with information.

and yeah mave let me know.. i also want to hear it from ricardo too if possible.


·
Registered
Joined
·
132 Posts
Didn't mean that you would get into trouble. I just ment that this is going to be a good thread to watch the owners of two different products battle it out. Which will be a good thing. It will be some time before I can afford to do this mod so as much pro and con information I can collect will be great. Again, GREAT Post. Thanks.
